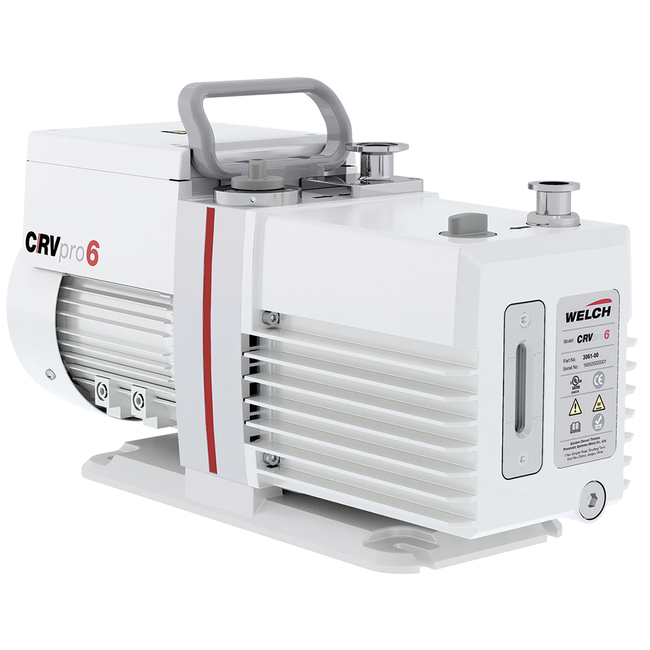

CRVpro™ Direct Drive Rotary Vane Vacuum Pump
The robust vacuum pump CRVpro belongs to the new high-performance two-stage rotary vane pumps generation of Welch.
Have Questions?
Change view
| Catalog Number | Model | Air Displacement | Dimensions (L x W x H) | Weight (English) |
|---|---|---|---|---|
| WEL3062-00 | CRVpro 6 | 3.5 CFM, 100 L/min. | 18.2 x 6.1 x 9.1 in. | 48.5 lb. |
| WEL3082-00 | CRVpro 8 | 4.7 CFM, 133 L/min. | 18.2 x 6.1 x 9.1 in. | 49.6 lb. |
| WEL3162-00 | CRVpro 16 | 10.7 CFM, 305 L/min. | 22.4 x 8.1 x 11.4 in. | 81.6 lb. |
Catalog number WEL3062-00
View Price:Sign InSign in to see your account pricing. Need an account? Register with us today.
Model:
CRVpro 6
Air Displacement:
3.5 CFM, 100 L/min.
Dimensions (L x W x H):
18.2 x 6.1 x 9.1 in.
Weight (English):
48.5 lb.
- Welch Gardner Denver CRVpro Two-Stage Rotary Vane Vacuum Pump
- The robust vacuum pump CRVpro belongs to the new high-performance two-stage rotary vane pumps generation of Welch.
- The pump impresses with its long service life, absolute reliability and its low maintenance requirements.
- This has been enabled thanks to 3 major innovations:
- Its low running temperature, which slows down potential corrosion processes and reduces the oil consumption.
- Its large oil reservoir ensures a low chemical concentration, which contributes to the prolongation of the oil exchange intervals.
- Its special inside coating increases the chemical resistance of the pump.
- Scope of delivery: Pump with motor, 3 line cords (EU/UK/US), 2 liters of oil, centering ring with dirt trap, centering ring, 2 clamping rings.
Specifications
Max. Vacuum0.05 torr
Horsepower0.5 hp
IncludesPump with Motor, 3 Line Cords (EU/UK/US), 2 L of Oil, Centering Ring with Dirt Trap, Centering Ring, 2 Clamping Rings
Motor Speed1450 rpm
Certifications/CompliancecUL and CE
Dimensions (L x W x H)18.2 x 6.1 x 9.1 in.
ModelCRVpro 6
Weight (English)48.5 lb.
Temperature (Metric) Max40°C
Temperature (Metric) Min.10°C
Frequency50/60 Hz
Pump TypeRotary Vane Vacuum Pump
Air Displacement3.5 CFM, 100 L/min.
Oil Capacity1150 mL
Maximum Pressure2 x 10-3 mbar (1.5 x 10-3 torr)
Voltage230 V
