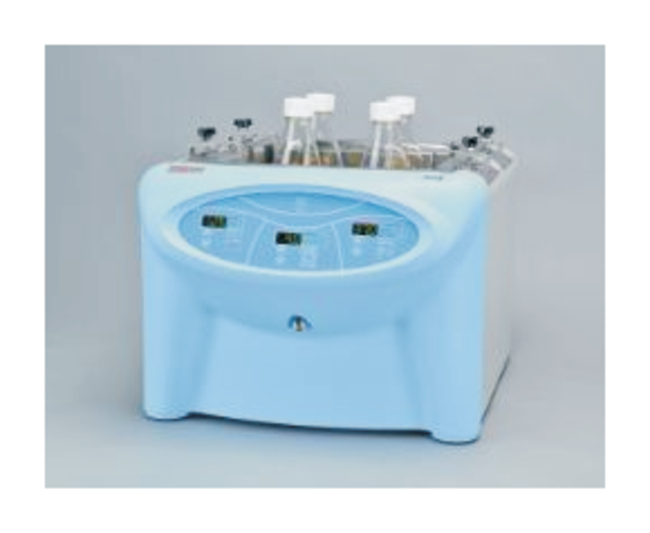

MaxQ™ 7000 Water Bath Orbital Shaker

Combine a controlled water bath temperature and orbital shaking motion with the Thermo Scientific™ MaxQ™ 7000 Water Bath Orbital Shaker. These benchtop orbital water bath shakers easily hold large gel trays in an oversized bath chamber and contain an easy-access drain system located in the front of the cabinet. They are ideal for cell culture, solubility studies, extraction procedures, diagnostic tests and many other applications.

Features:

• The MaxQ 7000 is easy to drain and disinfect with the front-access drain system and quick disconnect
• Twin baffles minimize splashing and turbulence in the chamber
• Choice of stainless-steel or Plexiglas™ cover minimizes evaporation and heat loss
• Temperature range of 5°C above ambient to 90°C with use of stainless-steel covers
• Monitor and control chamber temperature range with ±0.2°C accuracy at 37°C in flask
• View speed, time and tesmperature simultaneously on three separate displays
• Triple eccentric drive handles heavy loads, uniform agitation and continuous 24-hr. operation, even at high speeds
• Easy access drain system with quick disconnect is located in the front of the cabinet for convenience in draining and disinfecting the syste
• Low-level water alarm alerts operator
• Optional cooling coil extends the range of applications to near and below ambient
• Holds 11 × 13 in. platform which must be ordered separately

Analog Model:

• Variable speed control from 40 to 400rpm controlled by a rotary dial monitored accurately by a traditional tachometer
• Integrated tachometer monitors and displays speed in rpm to guarantee an accurate setting
• Continuous mode or set timer from 1 to 60 min.

Digital Model:

• Speed range: 15 to 500rpm, ±1rpm
• Continuous and timed operation from 0.1 hr. up to 999 hr. or 0.1 min. to 999 min.
• Shaker shutdown and audible/visual alarms signal if unit operates ±10% of set speed, preventing shaker from walking
• Visual/audible signals alert to temperature deviations and low water levels; heat turns off if temperature deviates ±1°C of setpoint
• User-adjustable speed calibration can be performed using a digital handheld tachometer
• Unbalanced load sensor stops platform motion when excess vibration is detected; visual/audible alarms signal until condition is corrected
• Soft-start feature eliminates sudden starts and stops, splashing of vessel contents or wetting of flask closure
• Solid-state DC brushless motor is maintenance-free
• Retains parameters during power failure and restarts automatically after power is restored

Ordering Information:

For a complete system, order platforms and clamps (sold separately).

Requires:

• Universal Platform (without clamps), or
• Dedicated Platform (with pre-installed clamps)
• Clamps

Recommended for:

• Bacterial suspensions
• Cell culture
• Diagnostic tests
• Extraction procedures
• General mixing
• Hybridization
• Solubility studies
• Staining and destaining
• Washing procedures
