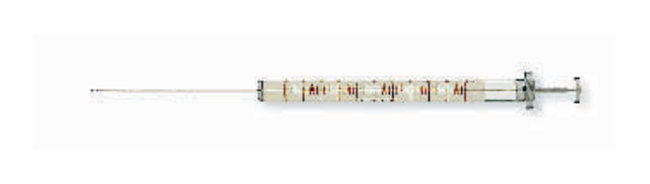

Series II Standard Fixed Needle Syringes
Standard syringes with anti-roll flange and needles that are aligned with zero mark on barrel to reduce dead volume, improve accuracy and precision to <±1%
Have Questions?
Change view
| Catalog Number | Volume (Metric) | Needle Gauge | Includes | Quantity |
|---|---|---|---|---|
| SGE004000 | 50 μL | 25 G | Standard plunger | Ea. |
| SGE001000 | 5 μL | 26 G | Plunger protection | Ea. |
| SGE002030 | 10 μL | 26 G | Plunger protection | 6 Pk. |
| SGE005000 | 100 μL | 25 G | Standard plunger | Ea. |
| SGE006000 | 250 μL | 25 G | Standard plunger | Ea. |
| SGE007000 | 500 μL | 25 G | Standard plunger | Ea. |
Catalog number SGE004000
View Price:Sign InSign in to see your account pricing. Need an account? Register with us today.
Volume (Metric):
50 μL
Needle Gauge:
25 G
Includes:
Standard plunger
Quantity:
Ea.
Standard syringes with anti-roll flange and needles that are aligned with zero mark on barrel to reduce dead volume, improve accuracy and precision to <±1%
- Stainless-steel plungers are hand fitted, noninterchangeable, nonreplaceable
- Syringes with 5 and 10μL capacities have barrel O.D. of 6.5mm, scale length of 54.1mm and include a 50mm long 26s gauge needle
- 25 to 500μL capacity syringes have 8mm O.D. barrel, 60mm scale length and 50mm long, 25 gauge needle Fixed-needle models have needle glued into barrel with solvent-resistant epoxy glue Removable-needle models feature a PTFE seal, a spring and nut for leak-resistant operation
Specifications
Accuracy±1%
MaterialBorosilicate Glass (Barrel), Borosilicate Glass (Barrel), Stainless Steel (Plunger)
Needle Gauge25 G
Diameter (English) Outer Needle0.01 in.
Diameter (English) Outer0.31 in.
Diameter (Metric) Outer8 mm
Diameter (Metric) Outer Needle0.5 mm
IncludesStandard plunger
Length (English) Needle1.96 in.
Product TypeMicrovolume Syringe
GraduationsMajor - 5.0 μL, Minor - 1.0 μL
Model50F
QuantityEa.
Volume (Metric)50 μL
Product LineSGE
Length (Metric) Needle50 mm
Needle Point StyleFixed Bevel
Connection TypeFixed
GraduatedYes
Unit SizeEA
