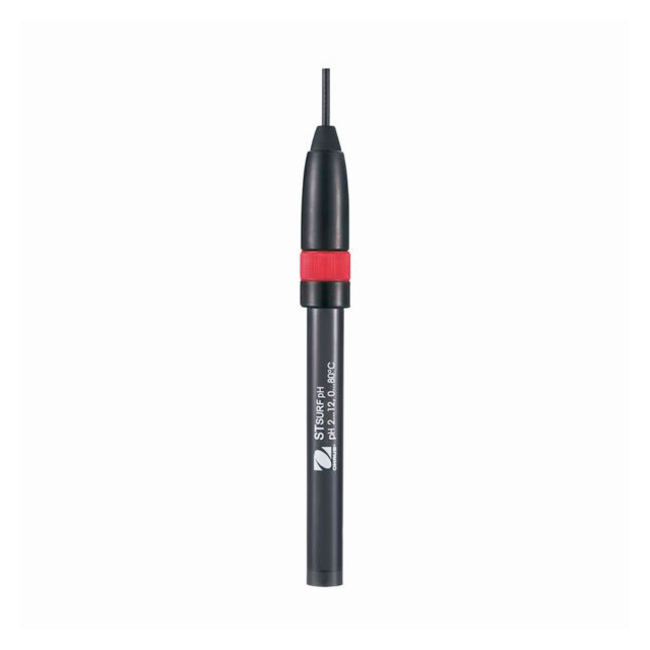

Starter Series Electrode: STSURF 2-in-1 Flat pH Electrode

Name: Starter Series Electrode: STSURF 2-in-1 Flat pH Electrode
SKU: OHA30129470

Use in combination with Starter bench and portable meters. OHAUS Starter Series Electrode: STSURF 2-in-1 Flat pH Electrodes need to work with STTEMP30 temperature electrodes for 0.01 pH accuracy.

Catalog Number	Connector Types
OHA30129470	BNC

Catalog number OHA30129470

View Price:

Connector Types:

BNC

Designed to produce exact results time and time again
Sturdy and durable
Constructed from plastic shafts and built to withstand daily use
Includes a temperature sensor, which powers automatic temperature compensation and ensures accurate measurements
Fits in electrode holders on bench meters and electrode clips on all portable meters
Reference Electrolyte: 3M KCl Solution

Specifications

Parameters Measured: pH
pH Range: 0.00 to 14.00
Temperature Range: 0° to 80°C
Connection: BNC
Cable Length: 1 m
Shaft dia. x L: 12 x 120 mm
Zero Potential: 7.00±0.25 pH
Slope: ≥97%
Impedance: ≤250MOhm
Reference Diaphragm: Sleeve
Application Scope: surface, skin, leather, paper, emulsion

Applications

Ideal for use in lab or in the field.

Specifications

Connector TypesBNC

JunctionGlass Fiber

MaterialPlastic

pH Range0 to 14

Temperature (Metric) Operating0 to 100°

Type2-in-1 pH Electrode

Filling Solution Type3M KCl Solution

For Use With (Equipment)Starter bench and Portable meters

ModelSTSURF

Temperature Accuracy0 to 80°C

Length (Metric) Cable1 m

Length (Metric) Stem120 mm

Diameter (Metric) Body12 mm

Unit Size
