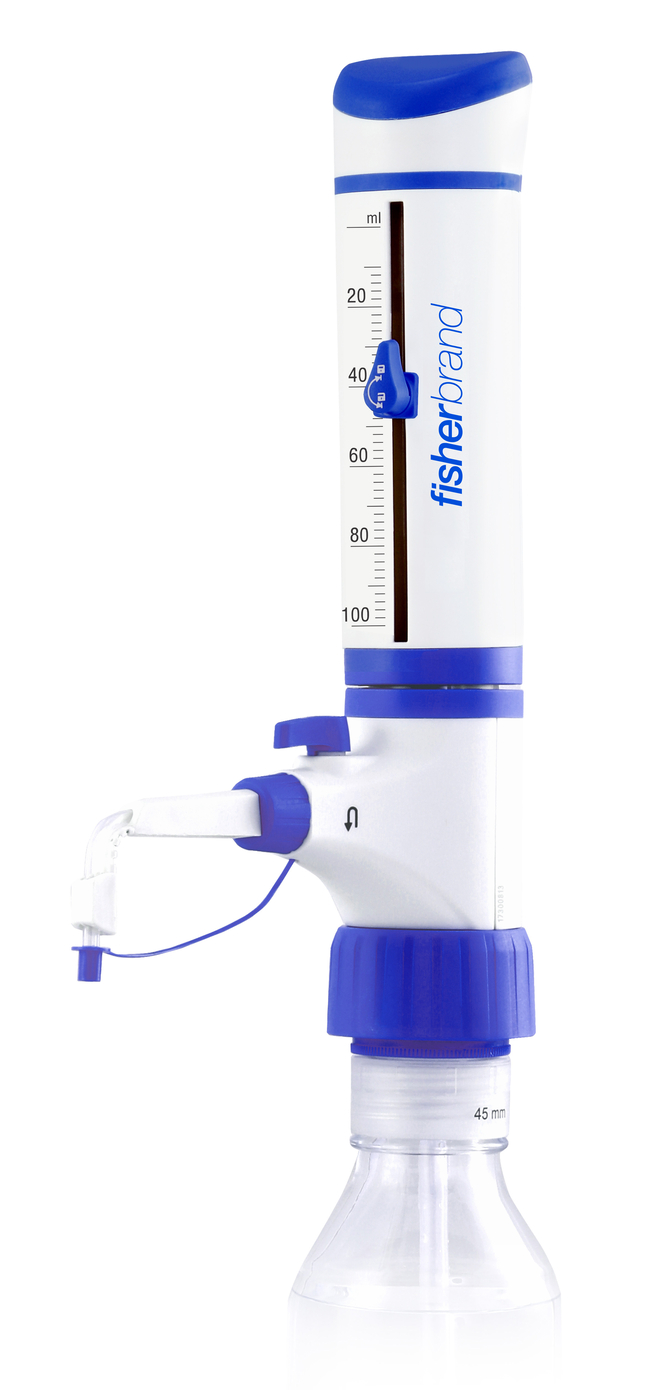

Bottle Top Dispenser with Re-Circulation Valve
Provides a contemporary design coupled with a recirculation valve. Bottle Top Dispenser with Re-Circulation Valve has enhanced chemical compatibility and smooth piston movement.
Have Questions?
Change view
| Catalog Number | Volume (Metric) |
|---|---|
| FBD13681529 | 10 to 100 mL |
| FIS13-681-525 | 0.5 to 5 mL |
| FBD13681526 | 1 to 10 mL |
| FIS13-681-526 | 1 to 10 mL |
| FIS13-681-527 | 2.5 to 30 mL |
| FBD13681528 | 5 to 60 mL |
| FIS13-681-528 | 5 to 60 mL |
Catalog number FBD13681529
View Price:Sign InSign in to see your account pricing. Need an account? Register with us today.
Volume (Metric):
10 to 100 mL
- Re-circulation valve helps user in quick purging without wasting any reagent
- Specially designed unique spring-less valve provides greater chemical compatibility, no chemical deposition and minimizing the maintainence
- Presence of unique spring-less valve, PTFE piston and ETP O-ring provides greater chemical compatibility, ensures wiper like smooth and effortless piston movement
- Specially designed 180° rotation volume setting knob provides quick and effortless volume adjustment
- Adjustable delivery nozzle provides flexibility to users in demanding laboratory conditions
- Bottle neck adapters of different sizes (28, 30, 32, 38, 40 and 45mm) ensures compatibility of dispenser with majority of reagent bottles
- Each dispenser is accompanied with tool, which helps in easy and quick re-calibration
- Contemporary and well designed contours, silky surface finish
- Individually calibrated as per ISO 8655-2
- Autoclavable
- Store instrument and accessories only in clean conditions in cool and dry place (from -20°C to 50°C)
Specifications
Product TypeBottletop Dispenser
AutoclavableAutoclavable
Certifications/ComplianceIndividually calibrated as per ISO 8655-2.
ColorWhite and Fisher Blue
Density2.2 g/cm3
DescriptionContemporary and well designed contours. Silky surface finish
MaterialPolypropylene - Outer Body (10% Glass Filled)
Volume (Metric)10 to 100 mL
For Use With (Equipment)Bottle Top Dispenser is used in laboratories to dispense reagent from the bottle in a preset volume accurately and safely into a receiving vessel.
IncludesCalibration tool, Adapters set (5 nos.), Instruction Manual, Inlet tube, Calibration report
ShapeCylindrical
Temperature (English)59°F to 104°F
Temperature (Metric)15°C to 40°C
Vapor Pressure300mbar to 600mbar
Viscosity Rating500mm2
Warranty1 year free replacement warranty against any manufacturing defects.
