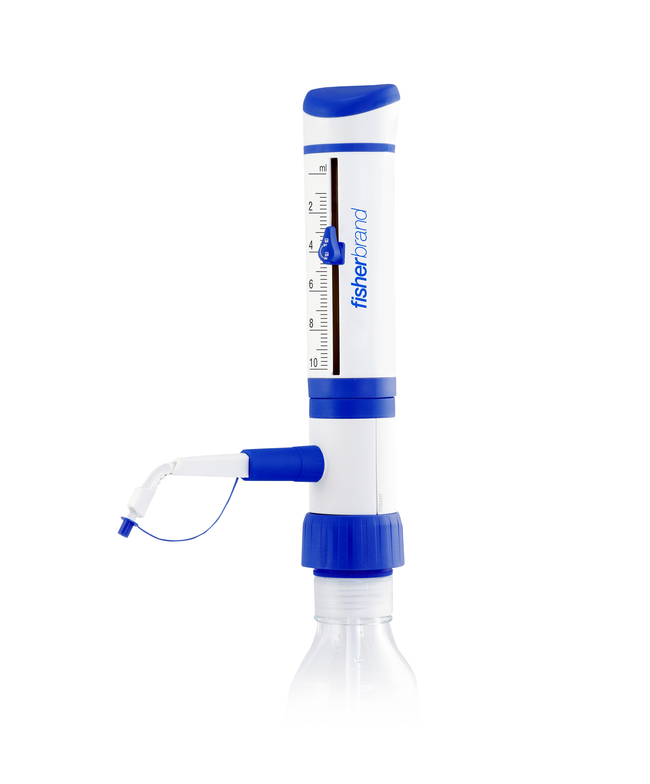

Autoclavable Bottletop Dispensers

Provides smooth, effortless dispensing.

Change view

Catalog Number	Accuracy	Increments	Precision	Volume (Metric)
FBD1361512	±0.6% (±0.060mL)	0.2 mL	±0.2% (±0.020mL)	1 to 10 mL
FBD1361510	±0.6% (±0.015mL)	0.05 mL	±0.2% (±0.005mL)	0.25 to 2.5 mL
FIS13-615-10	±0.6% (±0.015mL)	0.05 mL	±0.2% (±0.005mL)	0.25 to 2.5 mL
FBD1361511	±0.6% (±0.030mL)	0.1 mL	±0.2% (±0.010mL)	0.5 to 5 mL
FIS13-615-11	±0.6% (±0.030mL)	0.1 mL	±0.2% (±0.010mL)	0.5 to 5 mL
FBD1361513	±0.6% (±0.180mL)	0.5 mL	±0.2% (±0.060mL)	2.5 to 30 mL
FBD1361514	±0.6% (±0.360mL)	1.0 mL	±0.2% (±0.120mL)	5 to 60 mL
FBD1361515	±0.6% (±3.000mL)	2.0 mL	±0.2% (±0.200mL)	10 to 100 mL

8 Options

Catalog number FBD1361512

View Price:

Accuracy:

±0.6% (±0.060mL)

Increments:

0.2 mL

Precision:

±0.2% (±0.020mL)

Volume (Metric):

1 to 10 mL

Provides smooth, effortless dispensing

Wetted parts are PTFE, FEP and borosilicate glass (allows instrument to be used with a wide variety of chemicals)
7 volume ranges to choose from
Bubble-free dispensing
Effortless plunger movement
Disassembles for easy cleaning and servicing
Autoclavable at 121°C, 15 psi for 10 to 15 minutes
Each bottle top dispenser includes one 28mm, 32mm, 38mm, 40mm, 45mm bottle neck adaptor

Component Description

Piston: PTFE
Cylinder: Glass
Volume Adjustment Knob: Screw Type
Valve Housing: PTFE
Valve Assembly: Glass Ball & Seal
Discharge Assembly: PTFE
Delivery Tube: FEP
Inlet Tube: FEP, 13 in. (with extension)
Calibration: Individually calibrated and certified (in-lab by user is also possible)
Accuracy & Reproducibility: In accordance with ISO 8655 standards
Compability: Excellent with most reagents

Specifications

Accuracy±0.6% (±0.060mL)

Product TypeAnalog Bottletop Dispenser

AutoclavableAutoclavable

Channels1

MaterialPTFE, FEP, Borosilicate Glass

Volume (Metric)1 to 10 mL

Includes13-in. inlet tube (with extension)

Increments0.2 mL

Precision±0.2% (±0.020mL)

Unit Size
