Compact Digital Dry Bath/Block Heater
Maximize bench space with our compact, lightweight dry bath with multiple combinations of block sizes for versatility.
Have Questions?
Change view
| Catalog Number | Model | Heating Rate | Plug Type |
|---|---|---|---|
| 88871003 | Compact Dry Bath S | 20 min. average heating rate (30° to 100°C, ambient at 25°C) | CN, EU, UK |
| 88871004 | Compact Dry Bath D | 20 min. average heating rate (30° to 100°C, ambient at 25°C) | CN, EU, UK |
Catalog number 88871003
View Price:Sign InSign in to see your account pricing. Need an account? Register with us today.
Model:
Compact Dry Bath S
Heating Rate:
20 min. average heating rate (30° to 100°C, ambient at 25°C)
Plug Type:
CN, EU, UK

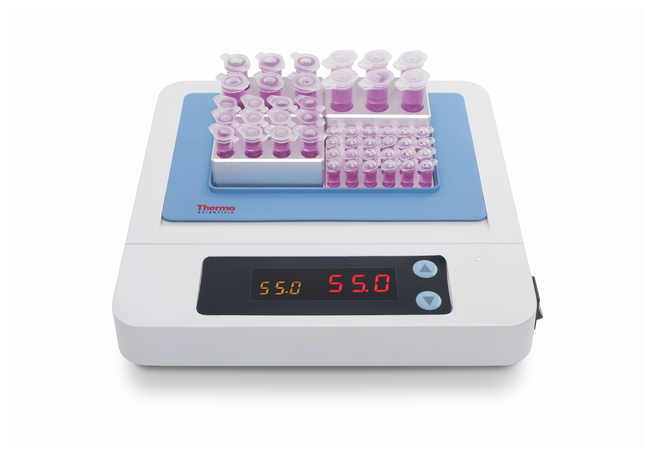

Maximize valuable bench space with Thermo Scientific™ Compact Digital Dry Bath/ Block Heater—available with multiple combinations of block sizes for tube size versatility.
- Built-in temperature-sensing probe assists with outstanding temperature accuracy and control
- Designed for precise temperature control
- Fast heating rate
- Multiple combinations of different sizes of blocks allows for maximum tube size versatility during experimental procedure
- 12V low voltage power input
- Two sizes to meet your application volume demands
- Convenient and easy-to-read digital display
- Small footprint
- Lightweight design
- Single (S) model can hold a full block, 2 half blocks, 4 quarter blocks or 1 half and 2 quarter blocks
- Double (D) model can hold 2 full blocks, 4 half blocks, 8 quarter blocks or a combination of full/half and quarter blocks.
Applications:
- Sample preparation
- Enzyme preservation
- Enzyme-substrate reactions
- DNA amplification
Required Accessory:
- Unit must be ordered with block(s)
Warranty: 1-year Thermo Fisher Scientific standard, limited warranty. Contact your sales representative for details. Disclaimer to internal research use restriction: Any restrictions on the purchaser to utilize the product(s) for internal research purposes only does not apply to the product(s) on the web pages associated with this statement.
Specifications
Certifications/ComplianceCE, cTUVus, RoHS
Controller TypeDigital
Capacity (Metric)0.2 mL
LightingLED
Plug TypeCN, EU, UK
Temperature Range (Metric)Ambient +2° to 100°C
TypeDry Bath/Block
Heating Rate20 min. average heating rate (30° to 100°C, ambient at 25°C)
IncludesDry bath, CN, EU,and UK style plugs, block lifter, plastic lid
ModelCompact Dry Bath S
No. of BlocksFull block, 2 half blocks, 4 quarter blocks or 1 half and 2 quarter blocks
Temperature Accuracy≤ ± 0.5°C
Temperature Uniformity≤ ± 0.5°C
Warranty1 Year, Replacement
Dimensions (L x W x H)185 x 185 x 25 mm (7.3 x 7.3 x 1 in.)
Length (English)7.3 in.
Length (Metric)185 mm
Width (English)7.3 in.
Width (Metric)185 mm
Height (English)1 in.
Height (Metric)25 mm
Weight (English)2.2 lb.
Weight (Metric)<1 kg
Electrical Requirements12 V, DC, 5 A
Voltage100/240 V
