GENESYS™ 40/50 Vis/UV-Vis Spectrophotometers

Thermo Fisher Scientific

GENESYS™ 40/50 Vis/UV-Vis Spectrophotometers

Name: GENESYS™ 40/50 Vis/UV-Vis Spectrophotometers
SKU: 840-298400

For teaching labs or quality control experts who require ruggedness, ease-of-use and software capability in UV-Vis spectrophotometry.

Change view

Catalog Number	Includes	Spectral Bandwidth	Wavelength Range	Warranty
840-298400	GENESYS 50 Spec+UK Power cord	2 nm	190 to 1100 nm	2 yrs std + 1 yr ext upon reg
840-297400	GENESYS 40 Spec+UK Power cord	5 nm	325 to 1100 nm	2 yrs std + 1 yr ext upon reg

2 Options

Catalog number 840-298400

View Price:

Includes:

GENESYS 50 Spec+UK Power cord

Spectral Bandwidth:

2 nm

Wavelength Range:

190 to 1100 nm

Warranty:

2 yrs std + 1 yr ext upon reg

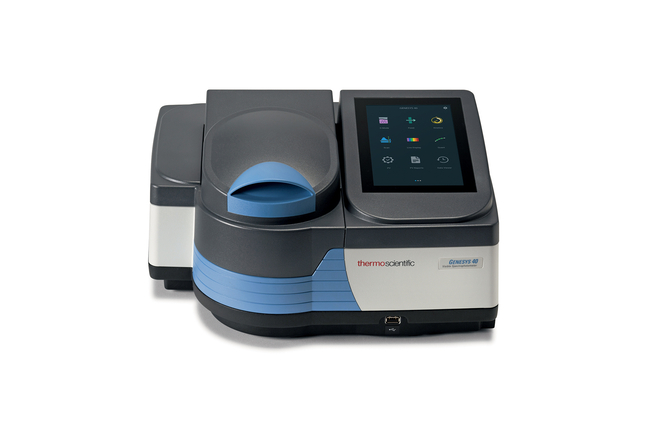

Perform routine measurements for quality control or teaching in the chemistry classroom with rugged Thermo Scientific™ GENESYS™ 50 UV-Visible and GENESYS 40 Vis Spectrophotometers. Offered in a single cell configuration, these instruments are designed with a sloping surface to shed spills and a washable sampling compartment for easy clean up. A 7-inch touchscreen interface, local control software (no PC needed) and optional Wi-Fi networking make the GENESYS 50 UV-Vis or GENESYS 40 Vis Spectrophotometer the ideal choice for daily sampling purposes.

The GENESYS 50 is a dual beam UV-Vis spectrophotometer in a single-cell configuration that meets all of the specifications for critical quality control applications and precise chemical measurements. The GENESYS 40 Dual Beam Vis Spectrophotometer is a visible spectral region version in this instrumental class. Both feature data resolution from 0.2 nm to 5 nm.

Features:

7-inch high-resolution touchscreen user interface
Local control for speed and reliability
Networking capable (Wi-Fi adaptor available)
Large sample compartment with front access

Designed for:

Chemistry labs
Routine measurements
Moderate throughput requirements

Specifications

Baseline Flatness±0.002 A

CompartmentsAccessible from top, front or side
Able to accommodate cells up to 100mm cells
Available accessory for test tubes up to 25 mm diameter and 150 mm height
Removable, washable sample compartment liner with magnetic placement and hold-down

ConnectionsSingle USB-A
Duplex USB-A
Export data to network or PC via USB, Ethernet, or Wi-Fi USB adaptor, available
Print via USB, Ethernet or Wi-Fi USB adaptor available

Detector TypeDual Silicon Photodiodes

Display7 in. High Definition Color Touchscreen, Fixed, 800 x 1280 pixels

Dimensions (L x W x H)35.5 x 38.5 x 19.5 cm

Spectral Bandwidth2 nm

Wavelength Range190 to 1100 nm

Drift(At 500 nm after 1 hour warmup) <0.0005 A/hr.

Electrical RequirementsExternal AC to DC converter. Voltage and Frequency (Hz) selected automatically, 100/240 V, 50/60 Hz

For Use With (Application)Sample Concentration

IncludesGENESYS 50 Spec+UK Power cord

KeypadTouchscreen

Lamp Life> 5 years typical, 3 years guaranteed

Noise(RMS at 500 nm 60 consecutive measurements)
≤0.00020A at 0A at 260 and 500 nm
≤0.00030A at 1A at 260 and 500 nm
≤0.00040A at 2A at 260 and 500 nm

Optical DesignDual Beam

Photometric Accuracy±0.002 A at 0.5 A, ±0.004 A at 1.0 A, ±0.008 A at 2.0 A

Photometric Display-3A to +5A

Photometric Range–2A to +3.5A

Photometric Repeatability±0.001 A at 1 A measured at 1.0 A at 546 nm

Printer IncludedSnap-on printer available

Scan SpeedSlow, medium and fast - up to 1600 nm/min.

Stray Light< 1.0%T 198 nm (KCl) , <0.05%T at 220 nm (NaI), <0.03%T at 340 nm (NaNO₂)

Warranty2 yrs std + 1 yr ext upon reg

Wavelength Accuracy±0.5 nm

Wavelength Data Interval0.2 nm, 0.5 nm, 1 nm, 2 nm, 5 nm

Wavelength Repeatability< ±0.2 nm

Weight (Metric)7.5 kg
