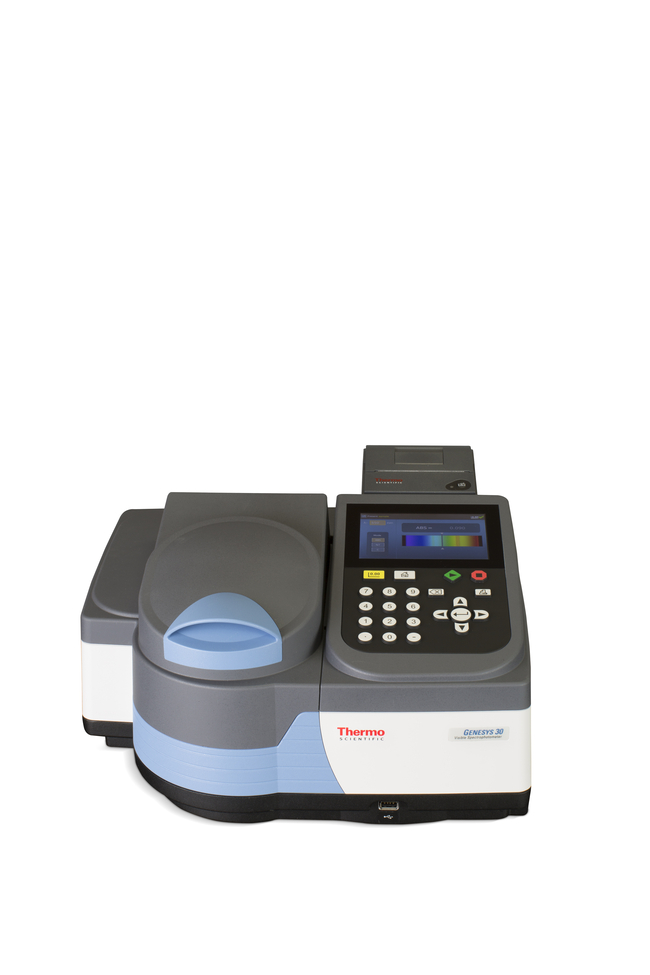

GENESYS™ 30 Visible Spectrophotometer

Perform both basic and complex analyses with the Thermo Scientific™ GENESYS™ 30 Visible Spectrophotometer, an intuitive, reliable solution for education or in the lab.

Catalog Number	Plug Type
840-277400	UK Plug

Catalog number 840-277400

View Price:

Plug Type:

UK Plug

Get high precision and functionality in a simple yet sophisticated visible spectrophotometer. The Thermo Scientific™ GENESYS™ 30 Visible Spectrophotometer performs both basic and complex analyses for educational or industrial use. Its intuitive design allows students and teachers to focus on scientific data and concepts rather than on learning how to use the instrument. In the lab, technicians of all levels working in routine QA/QC applications can easily obtain credible results to confirm quality or inform next steps. Results can be reported quickly as digital or printed data.

The GENESYS 30 visible spectrophotometer brings you intuitive design, a high definition color screen, fast and accurate measurements, and convenient data reporting. It is the ideal instrument for any user, whether a novice student or an experienced lab associate.

Product Features:

Entirely new industrial design for better usability
High definition 5-inch color screen with rubberized push-button keypad for easy navigation
Single cell measurement with removable, washable sample compartment liner
Cell holders for standard cell types including test-tubes
New onboard software UI; Thermo Scientific™ VISIONlite PC software is optional
- Data any way you want it
- USB data export in a text format that’s easy to read and process
Excellent snap-on thermal printer
Three-year warranty and skilled technical support

Educator benefits:

Meets curriculum requirements for:
Single wavelength
Scanning
Beer’s Law
Colorimetry/colorimetric analysis
Quantitative analysis

Lab associate benefits:

Higher data confidence with 6-point quant plus concentration mode
Multiple local language choices

Specifications

Baseline Flatness<0.003 A, 325 to 1000 nm, smoothed

CompartmentsAccessible from top, front or side
Able to accommodate cells up to 100mm pathlength
Available accessory for test-tubes up to 25mm diameter and 150mm height
Removable, washable sample compartment liner with magnetic placement and hold-down

ConnectionsUSB-A, USB-B

DescriptionGENESYS 30 VIS Spectrophotometer with UK Power Cable

Detector TypeSilicon Photodiode

Display5 in. 32-bit Color Display, 800 x 480 pixels

Dimensions (L x W x H)35.5x 38.5x 19.5 cm

LanguagesEnglish, French, German, Spanish, Italian, Portuguese, Russian, Chinese, Japanese, Korean, Thai, Arabic

Product LineGENESYS 30

Spectral Bandwidth5 nm

TypeVisible Spectrophotometer

Wavelength Range325 to 1100 nm

Drift<0.002 A/hr. (At 500 nm after 2 hr. warmup.) Typical <0.004 A/hr. after 1 hr. warmup

Electrical RequirementsExternal AC to DC converter. Voltage and Frequency (Hz) selected automatically, 100/250 V, 50/60 Hz

KeypadTactile rubber 23 keys with numeric keypad

Lamp Life1000 hrs.

Noise

≤0.001A at 0A
≤0.001A at 1A
≤0.002A at 2A
RMS at 500nm. 60 consecutive measurements

Optical DesignSingle Beam

Photometric Accuracy±0.002 A (0 to 0.3 A), 0.5% of ABS reading (0.301 A to 2.5 A)

Photometric Display-3A to +3A, 0 to 200 000 %T, 0 to 9 999 999 C

Photometric Range-3A to +3A

Photometric Repeatability± 0.002 A
Measured at 1.0 A at 546 nm

Plug TypeUK Plug

Printer IncludedThermal printer accessory with 80 mm width paper

Scan SpeedAutomatic – up to 1200 nm/min.

Stray Light<0.1%T at 340 nm and 400 nm
Measured using glass cutoff filters or NaNO₂ at 340 nm

Warranty2 years standard with 1 year extension upon registration of the instrument with Thermo Fisher Scientific within 6 months of purchase

Wavelength Accuracy±2 nm

Wavelength Data Interval1 nm

Wavelength Repeatability< ±1 nm

Weight (Metric)7.5 kg

Unit Size
