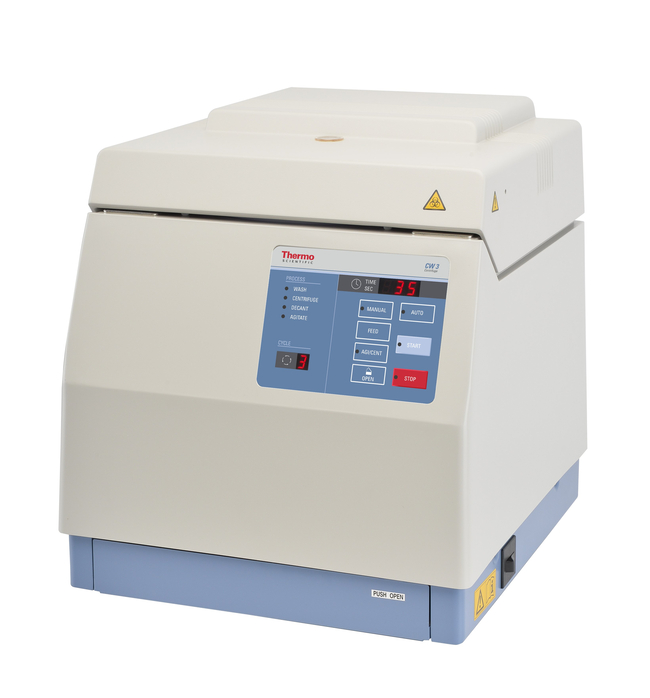

CW3 Cell Washer
Thorough, reproducible blood cell washing, up to 24 tubes per run with either fully automatic or manual modes.
| Catalog Number | Includes | Capacity | Electrical Requirements |
|---|---|---|---|
| 75007405 | Rotor not included | 24 Tubes | 220/230 V 50/60 Hz |
Catalog number 75007405
View Price:Sign InSign in to see your account pricing. Need an account? Register with us today.
Includes:
Rotor not included
Capacity:
24 Tubes
Electrical Requirements:
220/230 V 50/60 Hz
The Thermo Scientific™ CW3 Cell Washer has been discontinued.
Efficient Performance
- Finish washing 24 samples in as little as 3 minutes
- Achieve optimal corpuscle dryness by setting desired decanting speed
- Improve corpuscle washing with optional overflow method during centrifugation step
- Save time with pre-set programs in automatic mode
- Four stage display: Wash, Centrifuge, Decant, Agitate
- Manual mode available to wash the cells step-by-step, allowing closed monitoring of washing process
- Tube racks with red and blue number labeling for easy sample balancing
- Automatic alerts for low or disrupted saline level and for a completed run
- View port on top of unit is available for speed calibration
- Reduces risk of cross-contamination with the saline distributor mounted directly on top of the rotor
- Stainless steel rotor body enhances system durability
- Low-maintenance design with easy-to-change pump tubing
- Cleaning convenience with easy-to-remove catch basin, rotor and rotating bowl
Specifications
DescriptionCW3 Cell Washer
Capacity24 Tubes
Max. RCF1,180 x g (Centrifuge); 190 x g (Wash)
Max. Speed3,000 rpm (Centrifuge), 1,200 rpm (Wash), 350 to 500 rpm (Decant)
Certifications/ComplianceCE, CSA, FDA class 2, IVD compliant
Electrical Requirements220/230 V 50/60 Hz
Temperature RangeAmbient temperature +2°C to +35°C
Noise Level<53 db(A)
StandardsIEC 61010-1 , IEC 61010-2-020, EN ISO 13485 (refer to manual for more details)
Warranty2 Years
Other Functions4-stage display: Wash, Centrifuge, Decant, Agitate; End of run notification: 5 selectable melodies, electronic beeps or no sound; Safety devices: Door interlock, dual-overspeed detector, saline level sensor
Dimensions (HWD)16.1 x 14.6 x 17.7 in. (41 x 37 x 45 cm)
Net Weight61.6 lb. (28.0 kg)
Product LineThermo Scientific
TypeCell Washer
IncludesRotor not included
Frequency50/60 Hz
Voltage220/230 V
Run TimeAutomatic: 1 to 99 sec. (1 sec. increments); Manual: 1 to 999 sec. (1 sec. increments); 1 to 9 cycle settings
